Schema

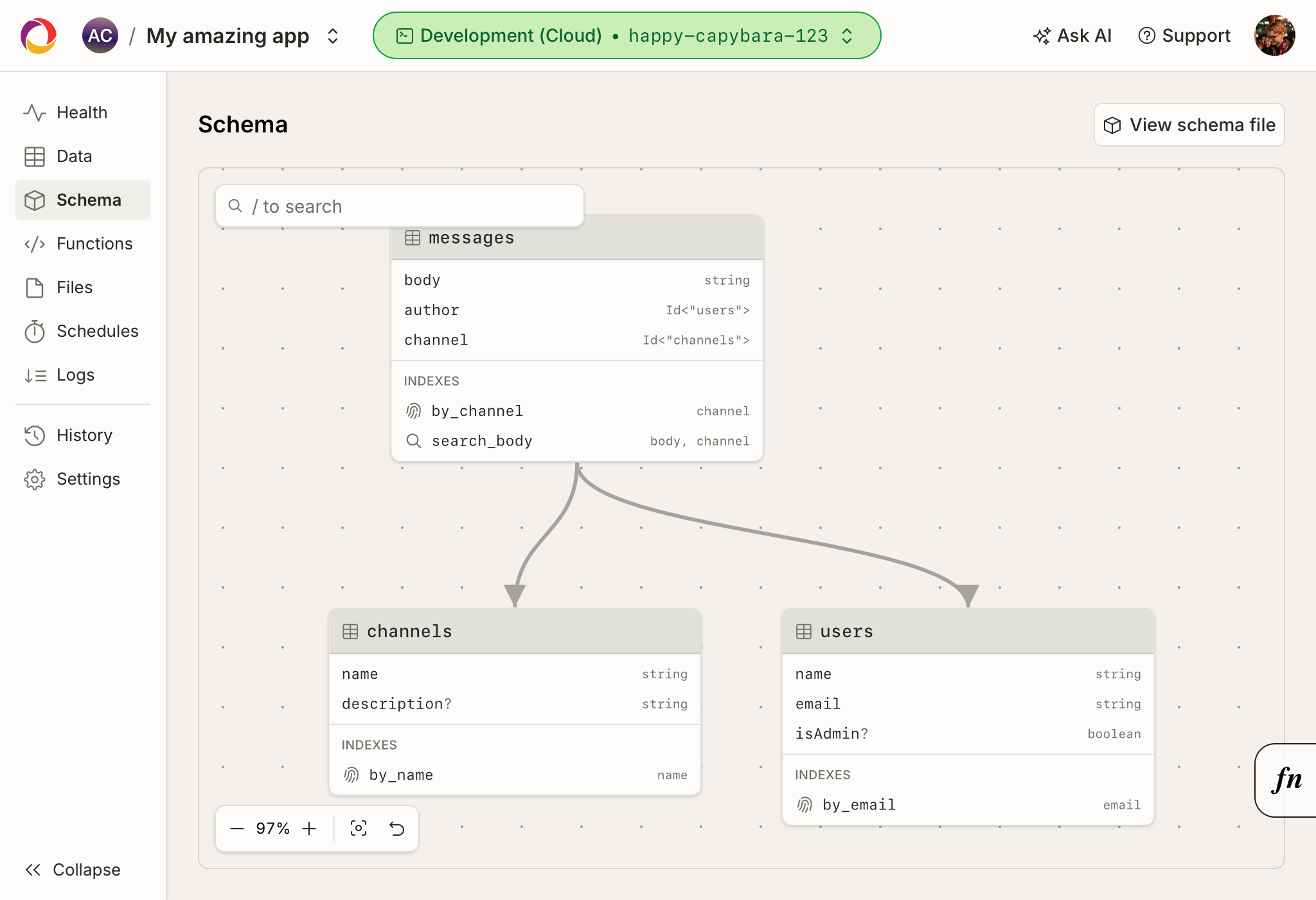

The Schema page of the dashboard

The schema page shows a diagram of all the tables in your deployment and the relationships between them.

The diagram is built from your deployment's saved schema (the convex/schema.ts you've pushed). Each table is a node listing its fields and their types. Whenever a field references another document with v.id("..."), an arrow is drawn from that field to the table it points at, so you can see how your data is connected at a glance.

If a table exists in your data but isn't declared in your schema, it's still shown in the diagram and flagged as not being part of the schema.

If you haven't saved a schema at all, the schema page instead shows a diagram of your generated schema - the tables that Convex infers from the shape of your existing documents. This lets you visualize your data even before you add a convex/schema.ts.

You can pan and zoom the diagram, and drag tables to rearrange them. Your layout is saved per deployment, so the diagram stays how you left it the next time you open the page.

Selecting a table opens a side panel with more detail about that table, including the full type of each field and the table's indexes. From the side panel you can jump to a referenced table in the diagram, or open the table on the Data page to view and edit its documents.

Viewing the schema file​

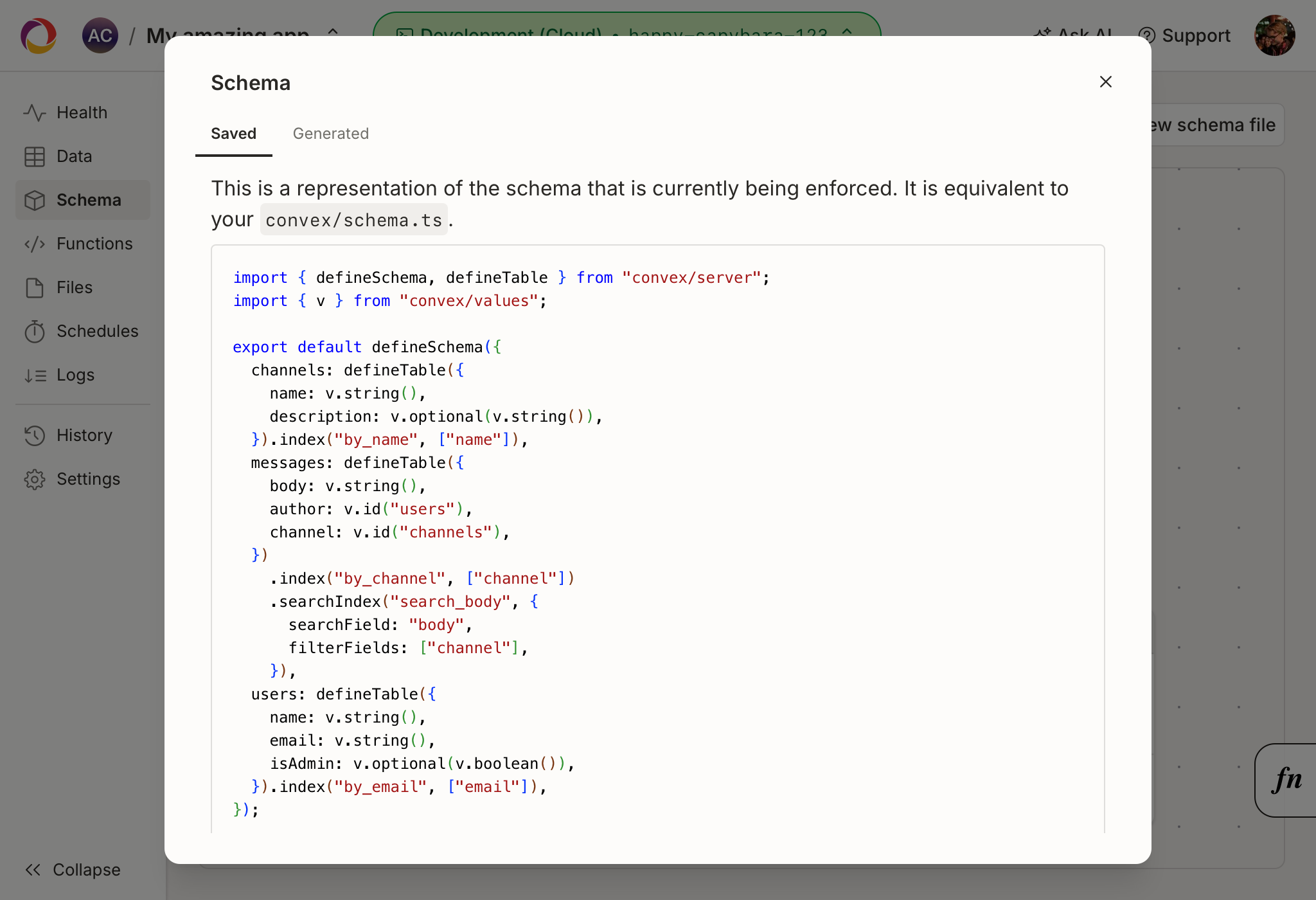

Click the "View schema file" button in the top-right of the page to see the saved and generated schema for your deployment as code.

Viewing the schema file

If you haven't defined a schema yet, Convex can generate one from the documents already in your tables, which you can copy into your convex/schema.ts to get started.
